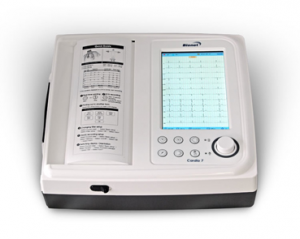

Bionet Cardio7 Interpretive EKG Machine

SKU: BIO7

$2,080.00

12 channel interpretive, resting ECG. It features a large 7” TFT LCD touch screen, supports USB flash drive, and prints in multiple formats.



Product Description

The Cardio7 is an economically priced, reliable interpretive, resting ECG. It features a large 7” TFT LCD touch screen, supports USB flash drive, a QWERTY keyboard, 5 minute recording time and storage of up to 120 patients. The Cardio7 is the most efficient and cost-effective 12 channel ECG, featuring print outs in multiple formats, including 12, 6 and 3 channel reports.

Cardio7 stands out for its advanced technology, high functionality, ease of use, and an unbeatable price/performance ratio.

Clinically Important Simultaneous 12 Lead Acquisition
Cardio7 acquires 10 full seconds of ECG data simultaneously from 10 leads to produce an accurate 12 channel printout with analysis in less than 60 seconds!

Maximized Ease of Use
Cardio7 combines menu-guided touch screen technology with a convenient rotary key to maximize ease of use.

Built-In Memory and Supports USB Flash Drive
Store up to 120 ECGs in internal flash memory and the saved ECGs can be saved to an external USB flash drive PDFs or JPEGs to a flash drive.

Enhanced Interpretation
The ECG printout offers detailed interpretation information in beat report format to aid in diagnosis. Provides 5 minute recording with HRV analysis, and 3 channel + 3 rhythm report. Supports Pediatric Interpretation.

Low Maintenance Cost
The Cardio7 uses normal fax paper which costs about ¼ the cost of ECG paper. It will even generate its own grid!

A4 Full Size Paper
The Cardio7 will produce full size A4 printouts in 1, 3, 6 and 12 channel formats. Full size print-outs improve readability and make it easier for filing in the patient chart.

ECG Filing System “EKG PLUS II”
EKG-Plus II is a software program that enables you to interface Cardio7 to Windows based computers through LAN. The ECG data from Cardio7 is saved in either Bionet’s proprietary file format (.ecg), or JPEG or PDF. The JPEG file format ensures compatibility with most EMR packages.

Includes:
Cardio7 Main Unit, 10 Lead ECG Patient Cable, Alligator Clips, Electrodes, Medi-Graph Paper, Hospital Grade Power Cord, Operation Manual, Diagnostics Guide Book, USB Flash Drive with EKG-Plus II Software Installed, and a 4 Year Warranty Card.

Option:
ECG Cart

Specifications

ECG Leads 10 lead 12 channel simulataneous 10-second resting ECG
Dimension 296 (w) x 305.5 (h) x   92.5 (d) mm
Approximately 2.98   kg
Recording Channel 3,6,12 channel and 1   channel (60 sec)
Sensitivity  5, 10, 20 auto (I~aVF: 10, V1~V6:5)   mm/mV
Printing Speed 12.5, 25, 50 mm/s
Filters AC (50/60 Hz, -20dB or   better)
Muscle (25~35Hz, -3dB or   better)
Base Line Drift (0.1Hz,   -3dB or better)
Low pass filter (off,   40Hz, 100Hz, 150Hz)
Display 2 x 16 character LCD   display
LCD display Sensitivity,   speed, filter status, HR, printing form, rhythm lead
LED indicator Signal quality, power   source, battery
Keyboard Membrane keyboard
Alphanumeric and symbol   available
Patient Data ID, name, age, sex,   height, weight
Basic Measurement Heart rate, PR, QRS,   QT/QTc, P-R-T axis
Recorder Thermal print head,   thermal roll paper
 Report papers:
 -Width: A4: 210mm or 8.5″
 -Length: A4: 300mm or 11″
 Effective writing width: 204mm
 Resolution:
 – Vertical: 8 dots/mm
 – Horizontal: 16 dots/mm
Electrical Internal noise: 20uV(p-p)   max
 Input circuit: Floating input
 Isolated and defibrillation protected
 Input impedance: >10MQ
 Input range: > +/- 5mV
 Common Mode Rejection: > +100dB
 DC offset voltage: > +/- 300mV
 Time constant: 3.2 sec
 Patient leakage current: <10uA
 Frequency response: 0.05~150Hz
Signal qualilty control Disconnected lead   detection
Power Power Supply: AC or   built-in Battery (option)
Power requirement: 100 –   240 Vac, 50/60Hz, 1.0 – 0.5A
Power consumption: 60w   max
Battery capacity  1 hour of normal use (approximately 100   automatic ECG printouts)
Communication PC connection with RS-232   interface and LAN
Safety Class 1, Type BF
Conformity CE, CSA
Environment Operating humidity:   30~85%
Operating temperature:   10° ~40° C
Atmospheric pressure: 70   ~ 106 KPa
Standard accessory Power Cable – 1 ea.
Patient Cable – 1   ea.
Electrode – 10 ea.
Chart Paper – 1 ea.
Operation Manual – 1   ea.
Options Rechargeable Battery   (ni-mh)
Cart
Hanger
Bag
PC s/w
Limb electrode
Chest electrode
RS-232C null cable
LAN cable   (Ethernet-RJ-45)

Accessories

Brochures

Content Not Available

Additional Information

Weight 3.5 lbs
Dimensions 295 x 305.5 x 92.5 in
