Product Description

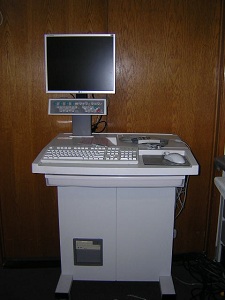

The GE Case 8000 Stress Test System is an enhanced cardiac stress test system that includes a 14 channel acquisition/programmable lead configurations. The machine runs on NT technology and uses a hard drive to store the database.
Configured with the T2000 treadmill, you’ll be fully equipped for top performance. Designed to meet high quality standards, the Series 2000 treadmill is at the forefront of patient safety, dependability and overall performance.
Technical Specifications:
• SIGNAL PROCESSING ECG analysis frequency: 500 Hz
• ST measurements: ST amplitudes, slope, integral, index, ST/HR slope, ST/HR loops, ST/HR index up to 15 leads
• E, J and post-J point: Manual or computer selected
• Local storage: Minimum 3.2 Gb hard drive storage of complete ECG record and test results
• Display: 19″ flat panel color display
• ECG output: Real-time ECG/QRS beep/TTL synchronization output
• Full disclosure ECG: Beat-to-beat ECG record and event review
• ECG interpretation: (Optional) 12SL7trade; adult and pediatric ECG analysis program
• Sampling rate: Over-sampling @ 4000 Hz, 12 leads
• Monitored leads: 3, 6 or 12
• Displayed leads: Number on screen 3 or 6 (12 lead check)
• Display format: 3 rhythm, 3 rhythm + medians, 3 rhythm + trends, 6 rhythm, 4 X 2.5 + 1 rhythm, 2 x 6 Display speeds:
25, 50 mm/s
• Displayed data: ST scan/median complexes, arrhythmias, ventricular ectopic/min counter, 3 to 15 waveforms, lead check
torso and 12 leads, waterfall display, trends, tabular summary, stored ECG strips, interpretation, time-of-day clock,
patient name, warning messages and prompts
• Writer technology: “Instant” load, thermal dot array
• Writer speeds: 5, 12.5, 25 and 50 mm/sec (+/- 2%)
• Frequency response: -3 dB, display and writer
• High pass filter: 0.01 (or 0.05 Hz, special use) with DC offset control
• Low pass filter: 20, 40, 100, 150 Hz (selectable)
• Line filter: 50.0 or 60.0 Hz notch filter (selectable)
• Power supply: AC operation only
• Operating voltage range: 90-135 VAC, 45-63 Hz, 2.8 A /180-270 VAC, 45-63 Hz, 1.4 A
• Temperature: +10 to +40°C (+50 to 104°F)
• Writer resolution: Horizontal 1000 lines/sec x 200 dpi dedicated local printing. 200 x 200 dpi generic printing
• Paper type: Thermal, perforated, fan fold, 300 sheets/pack
• Height: 160 cm(63 in) with 17″ monitor installed
• Width: 76 cm(30 in) with paper tray removed, 104 cm (41 in) with paper tray
• Depth: 86.5 cm (34 in)
• Weight: 68 kg (150 lb) without monitor, 86 kg (190 ob) with 17″ monitor
