Product Description
The GE Marquette Case System includes the following:
• Remote viewing function.
• Digital compact acquisition module reduces non-cardiac electrical noise.
• Waterfall Display color maps all exercise ECG tests into one quick and easy to read screen.
• Customizable Stress Chart offers a tabular summary of all test variables for clear, consistent and efficient report
generation.
• 13 Month Warranty

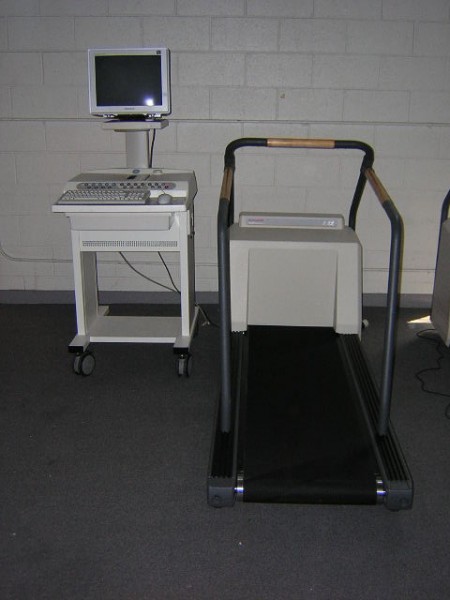

Configured with the T2100 treadmill, you’ll be fully equipped for top performance. Advances incorporated into the T-2100 treadmill place it at the forefront of patient safety, dependability and overall performance.
Technical Specifications:
• SIGNAL PROCESSING ECG: analysis frequency: 500 Hz
• ST measurements: ST amplitudes, slope, integral, index, ST/HR slope, ST/HR loops, ST/HR index up to 15 leads, E, J and
post-J point: Manual or computer selected,
• Local storage: Minimum 3.2 Gb hard drive storage of complete ECG record and test results
• E, J and post-J point: Manual or computer selected
• Display type: High resolution, color 0.25 mm dot pitch raster-written CRT
• Display resolution: 1024 x 768 x 70 Hz refresh,
• Display size:19″ Flat Panel ECG output: Real-time ECG/QRS beep/TTL synchronization output,
• Full disclosure ECG: Beat-to-beat ECG record and event review,
• ECG interpretation: (Optional) 12SL™ adult and pediatric ECG analysis program,
• Sampling rate: Over-sampling @ 4000 Hz, 12 leads,
• Monitored leads: 3, 6 or 12, Displayed leads: Number on screen 3 or 6 (12 lead check),
• Display format: 3 rhythm, 3 rhythm + medians, 3 rhythm + trends, 6 rhythm, 4 X 2.5 + 1 rhythm,
