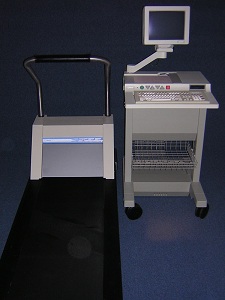

Product Description
Features:
• Freeze half of the screen while the other half displays live ECG data
• Up to 7 user-definable ergometer protocols, each with a resting stage and up to 99 exercise stages
• High-resolution thermal chart recorder produces quality reports ready for signature
• Menu, entry and control functions are easily accessible on the removable PC-compatible keyboard
• 13 Month Warranty
Technical Specifications:
• Frequency Response: 0.05 to 100 Hz., Lead Group: Standard 12-lead, Frank leads, Canadian, Cornell 12-lead, Cabrera
Sequence
• ECG Simulator: ECG signals for 14 electrode sites, programmable heart rate (user-selectable between 30 to 240 BPM) and
PVC’s (user-selectable)
• CRT Screen Content: Three ECG channels, real-time graphs and alphanumeric data
• Size: 14″ diagonal, Type: High-resolution monochrome raster scan, Memory
• Span: 8 seconds of ECG
• Freeze Feature: Split screen format with oldest four seconds of ECG frozen
• Protocols: 3 resident protocols: Bruce, Manual, and Astrand. Infinite number of user-programmable protocols, each with
up to 99 stages and warm up/cool down
• Dimensions: 59 x 24 x 31 inches. 150 x 61 x 79 cm (H x W x D), Weight: 142 lbs, 65 kg
System is electronically and mechanically tested and cycled. Any parts that do not meet factory specifications and performance are repaired or replaced.
