Product Description

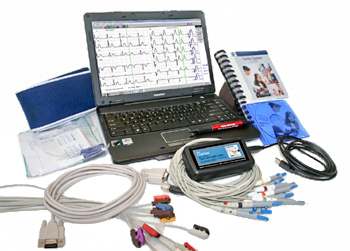

Nasiff CardioCard™ PC Based Exercise Stress ECG System with Bluetooth can turn any PC into an all-in-one cardiology system. Our Stress ECG has more protocols built in and available than any other system. All systems come with a fully interpretive 12 lead diagnostic Stress ECG, measurements matrix, serial historical comparisons, comprehensive patient charting, databases and more. Our system is EMR compatible with an unlimited database. (combine a medical grade treadmill with your PC ECG Stress for a complete system) (laptop sold separately)

CardioStress™ provides state-of-the art care during exercise activities – we care about you and your patients

• Simultaneous PC-based ECG (12- lead PC ECG)/PC EKG Diagnostic Acquisition
• WINDOWS: Point & Click User Interface
• Real-time 3-, 6- or 12- lead Color Display of ECG/EKG Complex
• 10 foot Patient ECG / EKG Cable with Locking Replaceable Leads (plus 3 feet)
• Full Patient Demographics and Information
• HR with Global Measurements, Complete Interval Values and ST information
• Capture Unlimited ECG/EKG Durations of Patient ECG Data to Hard Drive, Floppy or any Storage
Medium
• USB or Notebook (PCMCIA) Formats
• User Selectable Lead Formats on Final ECG Report
• Print Final Report to Non-fading Laser Hard Copy
• Real-time ECG/EKG Monitoring; 1-, 2-, 3-, 6- or 12- user Selectable Leads
• Complete Test Storage of ECG/EKG Data to Hard Disk, Floppy or Optical
• 29 Preprogrammed Protocols with 5 User Defined Protocols each with 40 Stages
• Graphs/Tables: HR and BP Trend, Speed/Grade, Representative beats for all Stages
• View/Print Full Disclosure Measurements for all Stages, ST Maximum/ST Average
• On-screen Status of Test: Phase Time, Total Time, Speed, Grade, Target HR, 12- lead ST Levels and
Slopes
• Report Transmission via Fax or Network
• Post Test Review/Editing of ECG Data
• Baseline Correction and other Filters to Minimize Motion Artifact

Compatible with Trackmaster 425 TMX treadmills, GE 2000, 2100 and Burdick/Quinton TM55 and ST55 Treadmills.

Included:
• ECG System
• Stress Cable
• Resting Patient Cable
• Treadmill Cable
• Stress Belt
• User Manual

Specifications

Technical Specifications
• Dimensions: 2.75” W x 1.25” D x 4.87” H (6.985 cm x 3.175 cm x 12.364 cm)
• Weight: .26 lb (.12 kg)
• Networking: Built-in
• Leads: Simultaneous interpretive 12- lead acquisition of your PC ECG/PC EKG
• Real-time: 1, 2, 3, 6 or 12- ECG lead color display of ECG/EKG complex with real time ST and HR
• ECG Interpretation Classes: Mls, blocks, enlargements and axis
• Cable: 10 foot ECG patient cable with locking replaceable leads
• Paper Type: 8.5” x 11” standard printer paper
• Gain Accuracy: ± 5%
• Frequency Response: 0.05 to 150 Hz
•CMRR: >120 dB
•Input Impedance: >1012 ohms
•System Noise: <40 mV RTI
•Dynamic Range: ± 5 mV
