Product Description

The Easy on-PC uses the power of your PC, laptop, or tablet, leveraging True Flow ultra sound technology for a complete spirometry solution. This PC spirometer uses pediatric incentives, displays inspiratory and expiratory real time curves and offers challenge testing. Some of the essential features include:

nDD TrueFlow Advantages:
• Not influenced by heat, humidity, barometric pressure, or altitude
• No cleaning, no maintenance
• Extremly high accuracy for low flows

Essential Features:
• Flexible EMR capabilities
• Simple and economic consumables.
• Easy to operate outside lab with operator prompts and diagnostics.
• Extremely high accuracy for low flows.
• PC guided spirometry.
• Bio calibration check feature.
• Ready to use GDT interfacing possibility.
• Test selection with or without tidal breathing.
• Actualized Fltetcher curve report.
• Country specific predicted values selectable and interpretation.
• Inspiratory and expiratory real-time curve(s)
• Challenge testing with manitol and methacholine protocols
• Pediatric incentives
• Trending
• Automated quality control
• Quick test
• Multilingual

Test Modes:
• Auto QC user selection for best trial from 8.
• Tidal breathing selectable.
• FVC, FVL, SVL, MVV, post testing

Proven Worldwide:
• NASA, COPDGene, BOLD
• Meets ATS/ERS, SSA Disability and NIOSH/OSHA standards.

Easy on PC Spirometry System Includes:
• Spirometry sensor
• Software
• Carry case
• 3 – year warranty

Not Included:

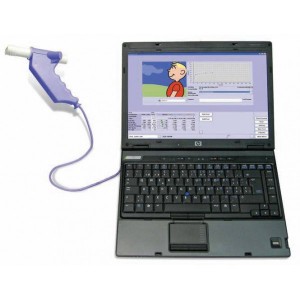

• PC Laptop in Photo is not included and used only for descriptive purposes.

Specifications

Technical Specifications:
• Dimension of PC sensor: 16 x 3 x 7 cms
• Weight: 155 g
• Cable length: 1.8 m
• Measuring accuracy:
◦ volume +/- 2 % or 0.050 l/s
◦ flow +/- 2 % or 0.020 l/s
◦ PEF +/- 5 % or 0.0200 l/s
◦ MVV +/- 5 % or 5 l/min

• Resolution:
◦ volume > 1 ml
◦ flow 4 ml/s
• Measuring range:
◦ volume +/- 12 l
◦ flow +/- 16 l/s
• Resistance: approx 0.3 cm H2O/l/s
• PC operating system: Windows 2000 SP4, Windows Server 2003, Windows XP SP2, Windows Vista
• Processor: Intel-/Pentium or equivalent, 1GHz
• Interface: USB 2.0 or earlier
• Screen resolution: min 1024 x 768 – 1280×960
• Hard disk capacity: Installation/System 1GB, Memory 4GB
• RAM: min 512 MB – 1GB recommended
• Languages: english, german, french, italian, spanish, portuguese, polish, japanese, norwegian, finnish, danish, greek, swedish, dutch
• Predicted values:
◦ ERS (ECCS), Roca, Austria, NHANES III, Knudson 1976, Knudson 1983, Crapo, Morris, Cherniak, Berglund, Gulsvik, Hedenstroem, Asia 1-4, JRS2001, Gore, Pereira, Finnish.
◦ Paediatrics: Zapletal, Polgar, Dockery, Hsu, Hibbert
