Product Description

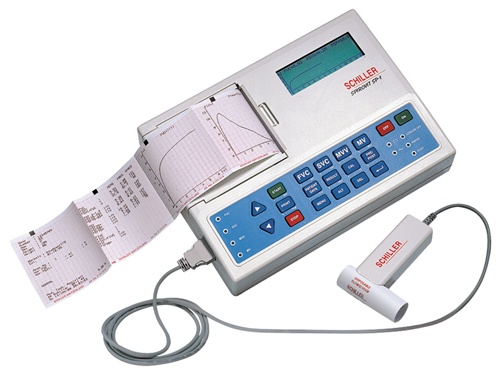

Spirovit SP-1 Standalone Spirometry System

Schiller’s SPIROVIT SP-1 is a unique solution to simplify complex lung function testing. Patient incentive screen, printer, memory, and battery all in a single, compact unit. Performs four inspiratory and expiratory pulmonary function tests with choice of predicted normals. The high resolution user-friendly screen displays real-time flow / volume loops and detailed measurement matrices. The data can be either printed within seconds or transmitted to a PC*.

Spirovit SP-1 Standard Spirometer Features:

• FVC, SVC, MVV, MV and pre/post medication tests with choice of predicted normals
• Simple operation
• Internal memory for up to 100 tests
• Calibration syringe (Part No. 2.100037L optional)
• Built-in mains and battery operation
• Ready-to-file reports within seconds on 3.5” (90 mm) paper
• Comparison of predicted and actual values
• Automatic interpretation
• Data transmission via built-in RS-232 interface to PC-based data management program *SEMA for long term storage, retrieval and trends
• Integrated program for pre/post-comparison, bronchospasmolysis and monitoring of challenge tests
• Meets ATS/ERS standards
• Choice of humidity insensitive SCHILLER SP-150 disposable sensor (DTC) or SP-20 reusable sensor
• Disposable Mouthpieces for SP-150 (Part No. 2.100077) or Flow Sensor Mouthpiece / Filters for SP-20 (2.100023 / 2.100025)
• Noseclip
• Operating Manual

Choice of Sensor: (make your selection in dropdown box above)

Disposable Sensor SP-150 – the risk of cross-contamination is reduced to a minimum. The small, lightweight sensors are low-cost and completely disposable. Simply remove, discard and replace the sensor after each patient performance. No need for disinfection.

Reusable Sensor SP-20 – small, lightweight and very easy to clean. The low-cost filters provide the most economical method of performing pulmonary function tests.

Accessories included:

• 1 pneumotach sensor (choice of SP-150 disposable or SP-20 reusable sensor)
• 1 noseclip
• 1 pack of disposable mouthpieces (for SP-150) or mouthpieces/filters (for SP-20)
• 1 power cable
• 1 pack of paper – Thermoreactive, Z-folded, width 90 mm/3.5in, perforation each page
• 1 operating manual

*Schiller’s SP-1 can be used as a stand-alone Spirometry system or transmit to a PC with the use of the SEMA software and a serial cable (sold separately).
